 RDC-15 |

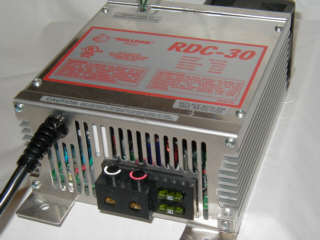

RDC-30 |
RDC-45 |
RDC-55 |
RDC-75 |
RDC-90 |
|||
| Suggested Retail $ | $ 184.00 | $219.00 | $ 299.00 | $ 355.00 | $ 456.00 | $ 499.00 | ||
| 120 volt You Pay:$ | $ 114.00 | $152.00 | $ 192.00 | $ 219.00 | $ 342.00 | $ 379.00 | ||
| Input Voltage | 90-135 | 90-135 | 90-135 | 90-135 | 90-135 | 90-135 | ||
| 220 Volt You Pay:$ | not avail. | $ 312.00 | $ 337.00 | $ 360.00 | not avail. | not avail. | ||
| Input voltage | -------------- | 208~240 | 208~240 | 208~240 | ------------- | ------------- | ||
| Input Frequency | 40-70 HZ | 40-70 HZ | 40-70 HZ | 40-70 HZ | 40-70 HZ | 40-70 HZ | ||
| Output Wattage | 200 | 400 | 600 | 740 | 1000 | 1210 | ||
| Output Voltage DC | 13.6-14.2 | 13.6-14.2 | 13.6-14.2 | 13.6-14.2 | 13.6-14.2 | 13.6-14.2 | ||
| Output Amperage | 15 | 30 | 45 | 55 | 75 | 90 | ||
| Dimensions (W X H) | 6.625x3.5 | 6.625x3.5 | 6.625x3.5 | 6.625x3.5 | 6.5x3.5 | 7.3.5 | ||
| Length | 7.25 | 8.25 | 8.25 | 8.25 | 13 | 13 | ||
| Weight | 4.0 | 5.5 | 5.5 | 6.5 | 8.0 Lbs. | 8.0 | ||
| Fan | none | 1 | 1 | 1 | 1 | 2 | ||
Click here to read operations manual in pdf
format:
Note: This is a long download. Use your back button to return. |
||||||||
|
These are Serious Capacitors for Filtering, race track boost, etc.
|
All Models have a quick Charge 14 volt capability with a
simple insertion of a plug. This increases the output voltage
to 14.2 volts for quick charging.
|
|||||||
